Product Information | Suggestion |
Composition: | Calandered PVC film, adhesive & release paper |

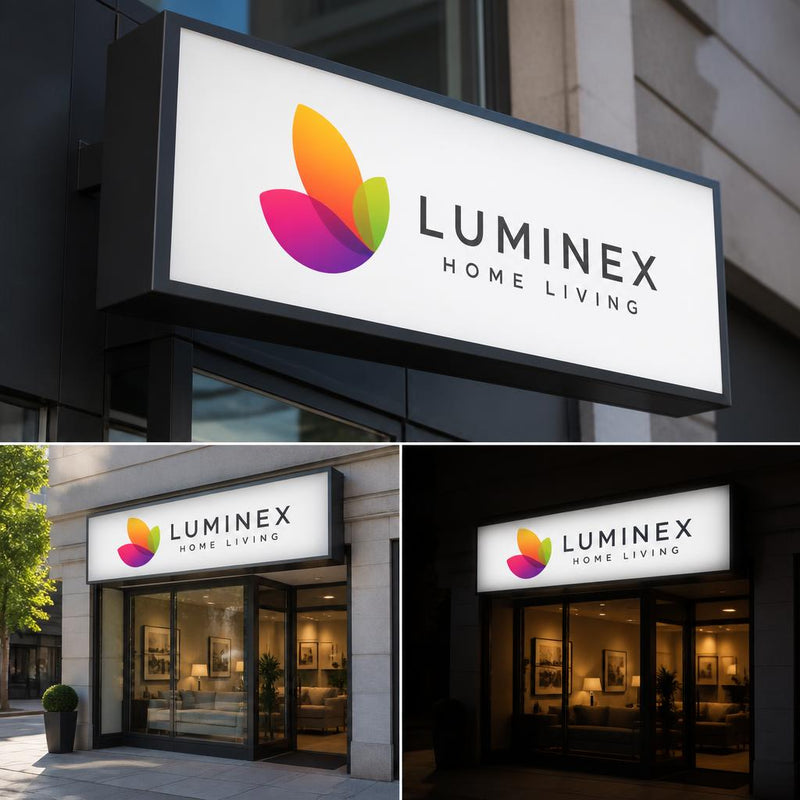

Main Applications: | Printed graphics mounted to light box substrates |
Features: | Controlled, reliable print formulation & shrinkage, stay-flat liner |
Benefits: | Reliable printing, high durability & flatness, visually appealing |
Formulation: | Plasticised Polymeric Vinyl |
Storage Conditions: | 5~40℃ & 35~75% RH in the original packaging |
Shelf Life: | 1 year from date of manufacture |
Release Liner: | Thick kraft paper with double side PE coated |
Adhesive Type: | Clear permanent solvent based acrylic |
Remarks: | Total weight including liner & adhesive 350gsm |
Eco Response | Testing Method |
Heavy Metal Free | No |
Recyclable | No |
Safety Compliance | RoHs Certified |
All statements, technical information and recommendation are based on tests we believe to be reliable, but the accuracy or completeness thereof is not guaranteed, and the following is made in lieu of all warranties of merchantability and fitness for the purpose: Sellers and manufacturer’s only obligation shall be to replace such quantity of the product proved to be defective. Before using, user shall determine the suitability of the product for its intended use, and user assumes all risk and liability whatsoever in connection therewith.
Basic Physical Data | Suggestion |
Thickness: | 330 micron ± 20 micron |
Weight: | 350 grams per m² ± 20 grams |
Gloss Level: | |
Matt Level: | |
Satin Level: | 70↑ Degree/60°Angle |
Clear Clarity | No |
Thermal Data | Suggestion |
Heat Resistance: | 80℃ |
Cold Resistance: | -30℃ |
Shrinkage: | 0.5↓ % (80℃x48hrs) |
Physical Characteristics | Suggestion |
Holding Power | 0.5↓ mm (JIS Z 0237) |
Ball Tack | No. 5~10 |
180 degree Peel Adhesion | 1100↑ g/25mm-20min, 1400↑g/25mm-24hr (JIS Z 0237) |
90 degree Release Force | 40±20 g/50mm (JIS Z 0237) |
Thickness | |
Film | 120 micron ± 10 micron |
Liner | 180 micron ± 10 micron |
Adhesive | 30 micron ± 5 micron |
Weight | 350 grams per m² ± 20 grams |
Tensile Strength | 2000↑ g/10mm (JIS Z 0237) |
Elongation at Break | 150↑ % (JIS Z 0237) |
Surface Finish Available | Satin |
UV Stabilised | Yes, to maximum concentration |
Certificates | Testing Method |
Quality & Testing | Durability ISO 4892-3 |
Manufacturing | ISO9001 |
Durability | Testing Method |
Indoor | 10 years |
Outdoor | 5 years |
Clean Removability |
Finishing | |
Cutting | X |
Welding | |
Folding | X |
Gluing | X |
Eyeletting | X |
Stitching | |
Laminating | X |
Bending | X |
Routing | |
Punching | X |
Drilling | X |
Screwing | X |
V-Grooving |
Stock Availability | Suggestion |
Roll Widths (mm): | 1370mm |
Roll Lengths (mtrs): | 50m |
Log Cutting: | Internal Spicers |
Standard Core: | 3 inch paper core |
Sheet Cutting: | Internal Spicers |
